Cut round, square, and profile tubes with high precision and stable performance. Designed for steel, stainless steel, and aluminum tube processing.
Send your tube size and material — get recommendation within 24 hours

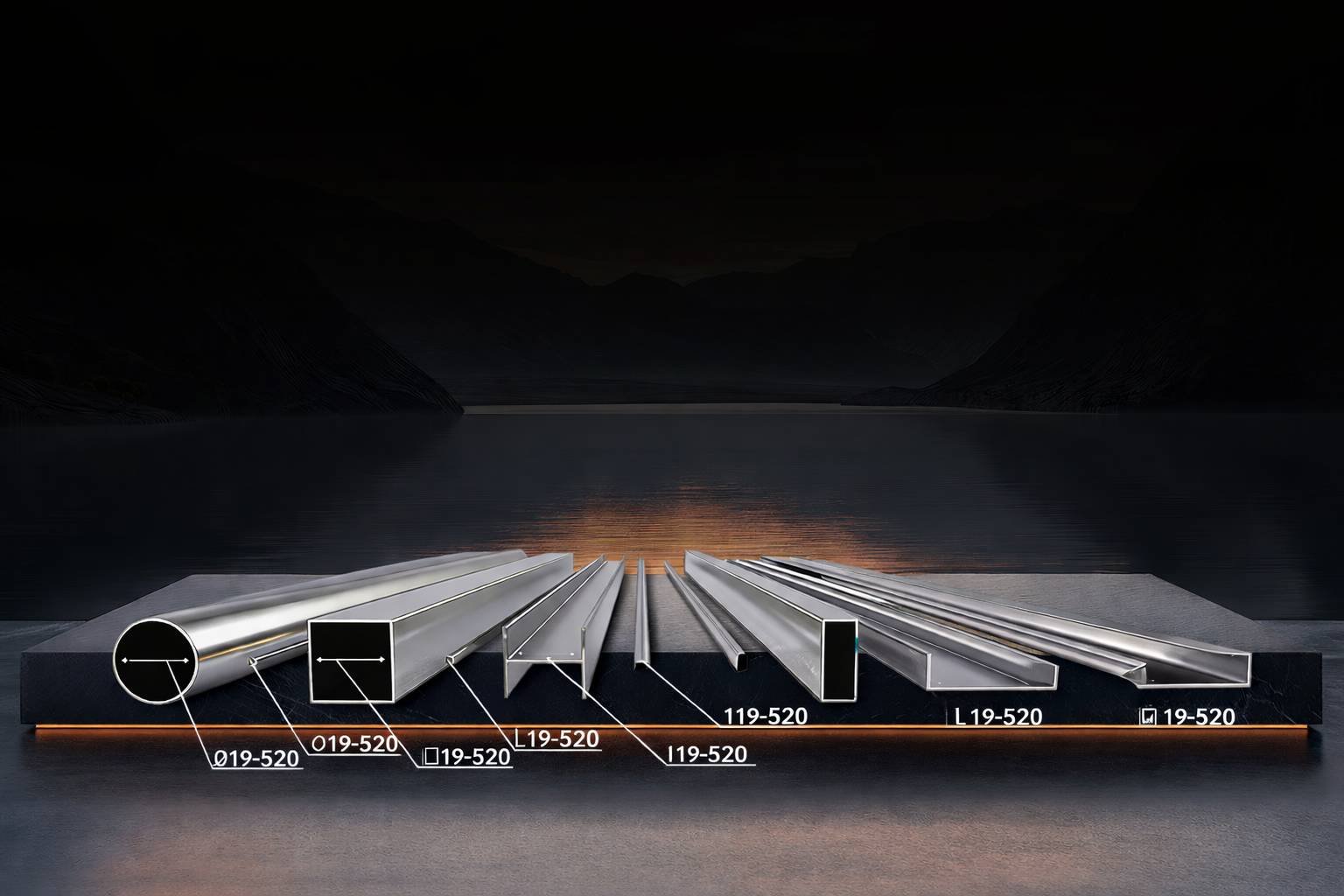

Different tube sizes require different machine configurations. From small tubes to heavy-duty pipes, we will recommend the most suitable solution based on your tube size, material, and production needs.

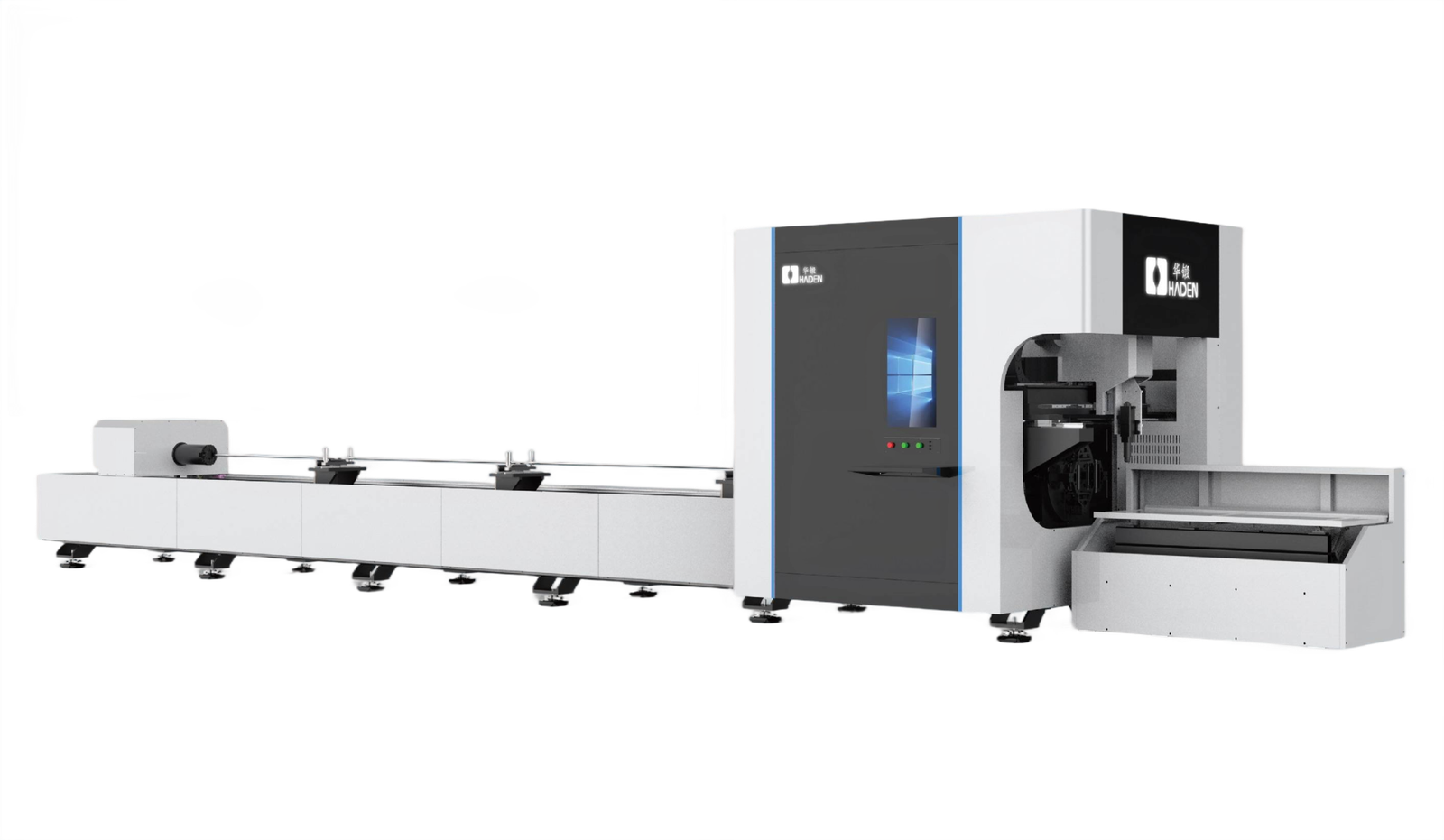

The HD-R Series is a complete tube laser cutting solution developed for different production needs in metal tube and profile processing. This series covers bed-mounted and side-mounted structures, with pneumatic, servo, and three-chuck configurations available from X1 to X6. It is suitable for round tubes, square tubes, rectangular tubes, and various metal profiles, offering stable clamping, efficient loading, precise cutting performance, and flexible model selection for a wide range of fabrication applications.
Multiple configurations available to match different production needs — from standard pneumatic models to advanced servo and three-chuck systems.
Entry-level solution with stable pneumatic clamping. Suitable for general tube cutting applications with reliable performance.
Get Quotation & SpecsSide-mounted structure improves loading efficiency and workflow. Ideal for continuous production environments.
Get Quotation & SpecsServo-driven system ensures higher clamping precision and repeatability for more demanding cutting requirements.
Get Quotation & SpecsCombines servo precision with efficient structure, suitable for automated and higher-end production lines.
Get Quotation & SpecsReduces tail material and increases utilization. Ideal for short tube cutting and batch production.
Get Quotation & SpecsHigh-end configuration maximizing automation efficiency, precision, and material utilization.
Get Quotation & SpecsKey structural components designed for efficient and stable tube laser cutting.
Typical configurations for HD-R tube laser machines. Final specifications depend on your application requirements.
Selected drive and motion components designed for stable cutting accuracy, smooth dynamics, and long-term reliability in daily production.
One-piece cast aluminum beam reduces moving mass while maintaining high rigidity. Lower inertia supports faster response during acceleration and direction changes.
Panasonic servo motors provide responsive motion control and stable torque output, supporting smooth cutting and reliable positioning.
Precision rack transmission ensures stable long-stroke positioning and repeatable accuracy during high-speed cutting.
High-precision reducer improves torque stability and supports low-backlash motion control in demanding cutting conditions.
HIWIN linear guideways provide smooth, low-friction travel and stable load capacity, supporting repeatable positioning accuracy.
Integrated programming, nesting, and cutting control support efficient setup and stable production execution.
Need a configuration recommendation for your material, thickness, and production target?
Discuss Your ApplicationDesigned for industrial production — not low-cost compromise.
We do not reduce key components to lower the price. Every machine is built for stable, long-term operation.
Heavy-duty bed design ensures rigidity and accuracy, especially for large-diameter tube processing.
Core parts are sourced from verified suppliers to ensure consistent performance and longer service life.
Stable configuration means less downtime, fewer repairs, and lower maintenance costs.
Built for continuous industrial use, not for low-price competition or short-term operation.
We recommend the right configuration based on your material, tube size, and production needs.
Looking for a reliable tube laser solution for your production?
Get Your Recommended SolutionReliable sheet metal machinery backed by proven manufacturing strength and global delivery experience.
Haden specializes in sheet metal fabrication equipment, including press brakes, fiber laser cutting machines, shearing machines, V-grooving machines, leveling lines, and plate rolling machines. We focus on stable performance, repeatable accuracy, and long-term production reliability for industrial users.
We cooperate with manufacturers, contractors, and industrial groups across global markets.
Key technical and operational questions regarding the HD-R Series pneumatic laser tube cutting machine.
