Product Overview

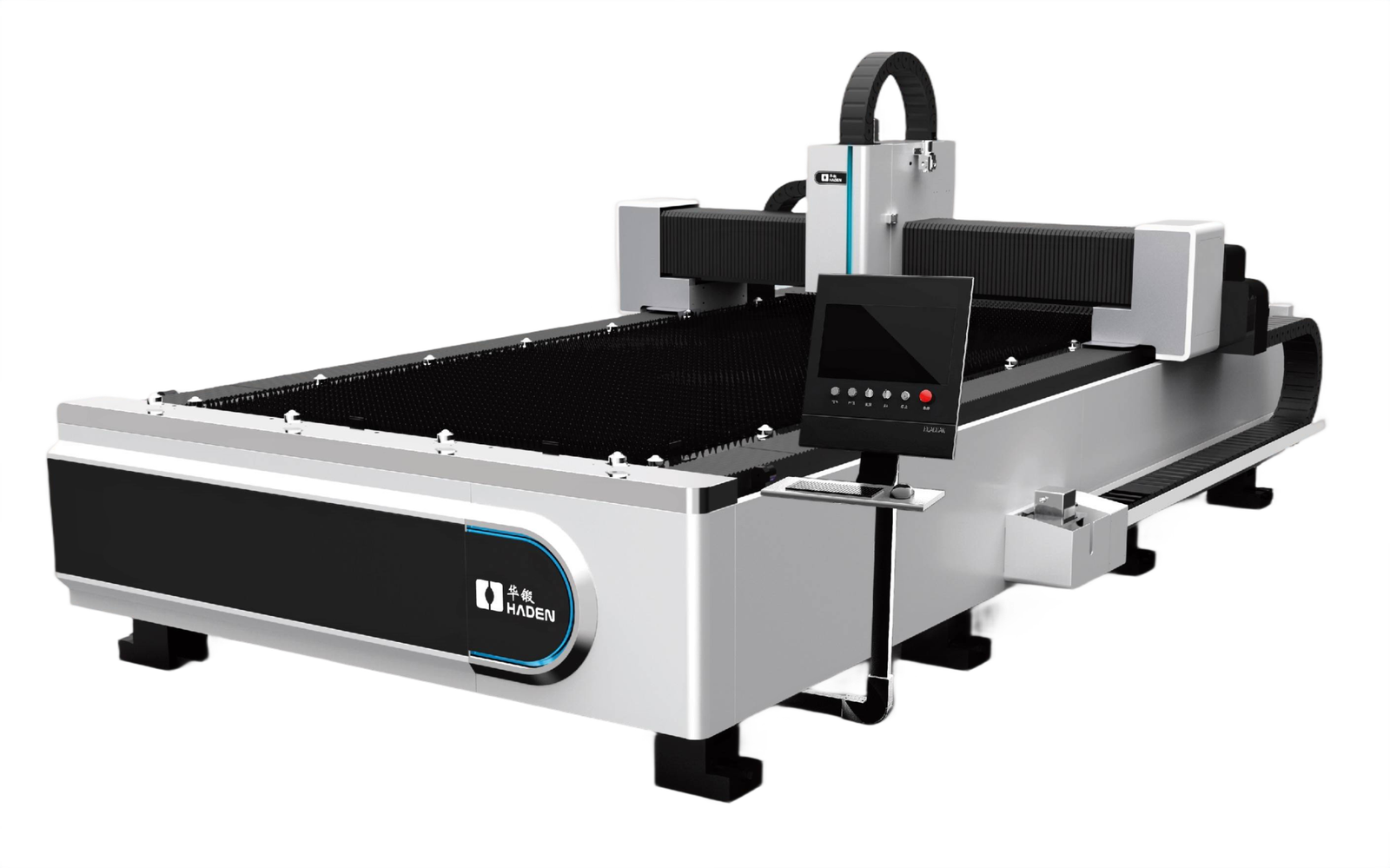

HD-T1 Series Single-Table Laser Cutting Machine

The HD-T1 Series is designed for efficient, high-precision sheet metal cutting in daily fabrication. With a rigid machine structure, stable motion control, and consistent laser output, it delivers clean cutting edges and reliable throughput across a wide range of materials. The HD-T1 is an ideal solution for job shops, industrial manufacturers, and OEM metal fabrication plants seeking dependable cutting performance in a compact footprint.

Job shops Industrial manufacturers OEM metal fabrication plants
Stable Cutting Quality High Precision Production Efficiency
Talk to a Specialist
HD-T1 Series in operation — stable cutting and efficient daily production. Open on YouTube

Core – Configuration

Select a component to view key features and structure details.

    HD-T1 Series Single-Table Laser Cutting Machine — Technical Specifications

    Two configurations: Standard Version & High-Power Version. Units: mm / mm·m / m/min / G / kg.

    Parameter HD-C-3015 HD-C-4015 HD-C-4020 HD-C-6015 HD-C-6020 HD-C-6025
    Range of Machining (L×W) 3000×15004000×15004000×20006000×15006000×20006000×2500
    X-axis Stroke 150515052005150520052505
    Y-axis Stroke 300540054005600560056005
    Z-axis Stroke 150150150150150150
    X/Y Positioning Accuracy ±0.05 mm/m±0.05 mm/m±0.05 mm/m±0.05 mm/m±0.05 mm/m±0.05 mm/m
    X/Y Repeated Positioning Accuracy ±0.03 mm/m±0.03 mm/m±0.03 mm/m±0.03 mm/m±0.03 mm/m±0.03 mm/m
    X/Y Max Positioning Speed 110 m/min110 m/min110 m/min110 m/min110 m/min110 m/min
    X/Y Max Acceleration 1.0–1.5 G1.0–1.5 G1.0–1.5 G1.0–1.5 G1.0–1.5 G1.0–1.5 G
    Height Adjustment Planar TrackingPlanar TrackingPlanar TrackingPlanar TrackingPlanar TrackingPlanar Tracking
    Minimum Line Width 0.150.150.150.150.150.15
    Max Load of Table 600 kg650 kg650 kg700 kg700 kg750 kg
    Machine Weight 4200 kg4500 kg5000 kg5500 kg6000 kg6500 kg
    Drive System Gantry Double DriveGantry Double DriveGantry Double DriveGantry Double DriveGantry Double DriveGantry Double Drive
    Numerical System CypCutCypCutCypCutCypCutCypCutCypCut
    Dimensions (L×W×H) 4700×2900×18005600×2900×18005600×3400×18007700×2900×18007700×3400×18007700×3900×1800

    Key Components & Build Details

    Selected drive and motion components designed for stable cutting accuracy, smooth dynamics, and long-term reliability in daily production.

    Cast aluminum beam
    BEAM

    Cast Aluminum Beam

    One-piece cast aluminum beam reduces moving mass while maintaining high rigidity. Lower inertia supports faster response during acceleration and direction changes.

    Advantage: Higher dynamic performance with stable rigidity for consistent cutting quality.
    Panasonic servo motor
    MOTOR

    Panasonic Servo Motor

    Panasonic servo motors provide responsive motion control and stable torque output, supporting smooth cutting and reliable positioning.

    Advantage: Smooth motion, stable output, and dependable performance in continuous operation.
    Taiwan YYC precision rack
    RACK

    Taiwan YYC Precision Rack

    Precision rack transmission ensures stable long-stroke positioning and repeatable accuracy during high-speed cutting.

    Advantage: Reliable transmission and consistent accuracy for large-format cutting.
    Shinbo flange reducer
    REDUCER

    Shinbo Flange Reducer

    High-precision reducer improves torque stability and supports low-backlash motion control in demanding cutting conditions.

    Advantage: Stable torque delivery with reduced vibration for smoother motion.
    Taiwan HIWIN linear guideways
    GUIDE RAIL

    Taiwan HIWIN Linear Guideways

    HIWIN linear guideways provide smooth, low-friction travel and stable load capacity, supporting repeatable positioning accuracy.

    Advantage: Smooth travel and stable guidance for better cutting precision.
    Cypcut control system
    CNC SYSTEM

    Cypcut Control System

    Integrated programming, nesting, and cutting control support efficient setup and stable production execution.

    Advantage: Efficient workflow and reliable process control for daily production.

    Need a configuration recommendation for your material, thickness, and production target?

    Discuss Your Application

    About Haden

    Reliable sheet metal machinery backed by proven manufacturing strength and global delivery experience.

    Haden specializes in sheet metal fabrication equipment, including press brakes, fiber laser cutting machines, shearing machines, V-grooving machines, leveling lines, and plate rolling machines. We focus on stable performance, repeatable accuracy, and long-term production reliability for industrial users.

    • ✓ Quality System — ISO 9001 certified manufacturing with CE-compliant equipment.
    • ✓ Product Coverage — Press brakes, laser cutting, shearing, V-grooving, leveling lines, and plate rolling machines.
    • ✓ Global Markets — Equipment delivered to more than 60 countries worldwide.
    Watch Factory Video Talk to a Haden Specialist
    Inside Haden manufacturing: production, assembly, and quality control.

    Trusted by Customers Worldwide

    We cooperate with manufacturers, contractors, and industrial groups across global markets.

    Certifications & Qualifications

    Verified certificates and compliance documents to support stable production and international delivery.

    CE Certificate for Press Brake
    CE Certificate (Press Brake)
    EU Conformity Compliance
    CE Certificate for Laser Cutting Machine
    CE Certificate (Laser Cutting Machine)
    EU Conformity Compliance
    Verification of Conformity (VoC) for Machinery Directive and EMC Compliance
    Verification of Conformity (VoC)
    MD 2006/42/EC & EMC 2014/30/EU
    ISO 9001 Quality Management System Certificate
    ISO 9001 Certificate
    Quality Management System
    IP Management System Certificate
    IP Management System Certificate
    Intellectual Property Management
    Utility Model Patent Certificate (CNIPA)
    Utility Model Patent Certificate
    CNIPA Patent Registration
    Technology-based SME Certificate (Jiangsu Province)
    Technology-based SME Certificate
    Jiangsu Province Recognition
    Scroll to view more. Click any certificate to view full size.

    Frequently Asked Questions

    Key technical and commercial questions regarding the HD-T1 Series single-table laser cutting machine.

    What applications is the HD-T1 Series laser cutting machine designed for?
    The HD-T1 Series is ideal for precision cutting of sheet metal, tubes, and complex part profiles in fabrication workshops, metal processing factories, and manufacturing environments where high precision and speed are required.
    What are the core advantages of the single-table design?
    A single-table configuration simplifies material loading/unloading and reduces floor space requirements. It enables efficient processing with straightforward operation, making it suitable for small to medium-volume production.
    What laser power options are available?
    The HD-T1 Series supports multiple laser power configurations to meet different cutting requirements, including thin-gauge stainless steel, mild steel, aluminum, and other metal materials with varying thickness.
    Which control systems are supported?
    The machine is equipped with a reliable CNC laser control system that supports intuitive operation, nested cutting programming, and optimized path planning to improve cut quality and production efficiency.
    How does the HD-T1 ensure cut quality and precision?
    Precision is achieved through a high-quality laser source, rigid mechanical frame, and advanced motion control. Combined with accurate beam focusing and optimized cutting algorithms, the result is clean edges and consistent repeatability.
    What optional features can be configured?
    Optional add-ons may include automated loading/unloading systems, advanced dust extraction, protective enclosures, and specialized tooling to match specific production workflows and material handling needs.
    What safety systems are supported?
    The HD-T1 Series includes standard protective features such as full enclosures, emergency stops, and safety interlocks. Additional safety solutions can be configured to meet local compliance requirements and workshop safety standards.
    What certifications and documentation are provided?
    Relevant compliance and certification documents (e.g., CE) are provided where applicable. Technical documentation, operation manuals, and laser safety instructions are included with the machine delivery.
    How is installation, training, and after-sales service handled?
    The HD-T1 Series is supplied with detailed installation guides and operation manuals. Remote commissioning support is available, and on-site service can be arranged depending on destination and requirements. Spare parts and technical support are offered throughout the machine’s service life.
    What information should customers provide to select the right configuration?
    To recommend the best configuration, please share your material type and thickness range, sheet size, expected production volume, and preferred laser power. Part drawings and cutting samples help ensure an optimized solution.
