High-speed laser cutting with full enclosure and automatic table exchange — built for safer operation, cleaner workshops, and uninterrupted industrial production.

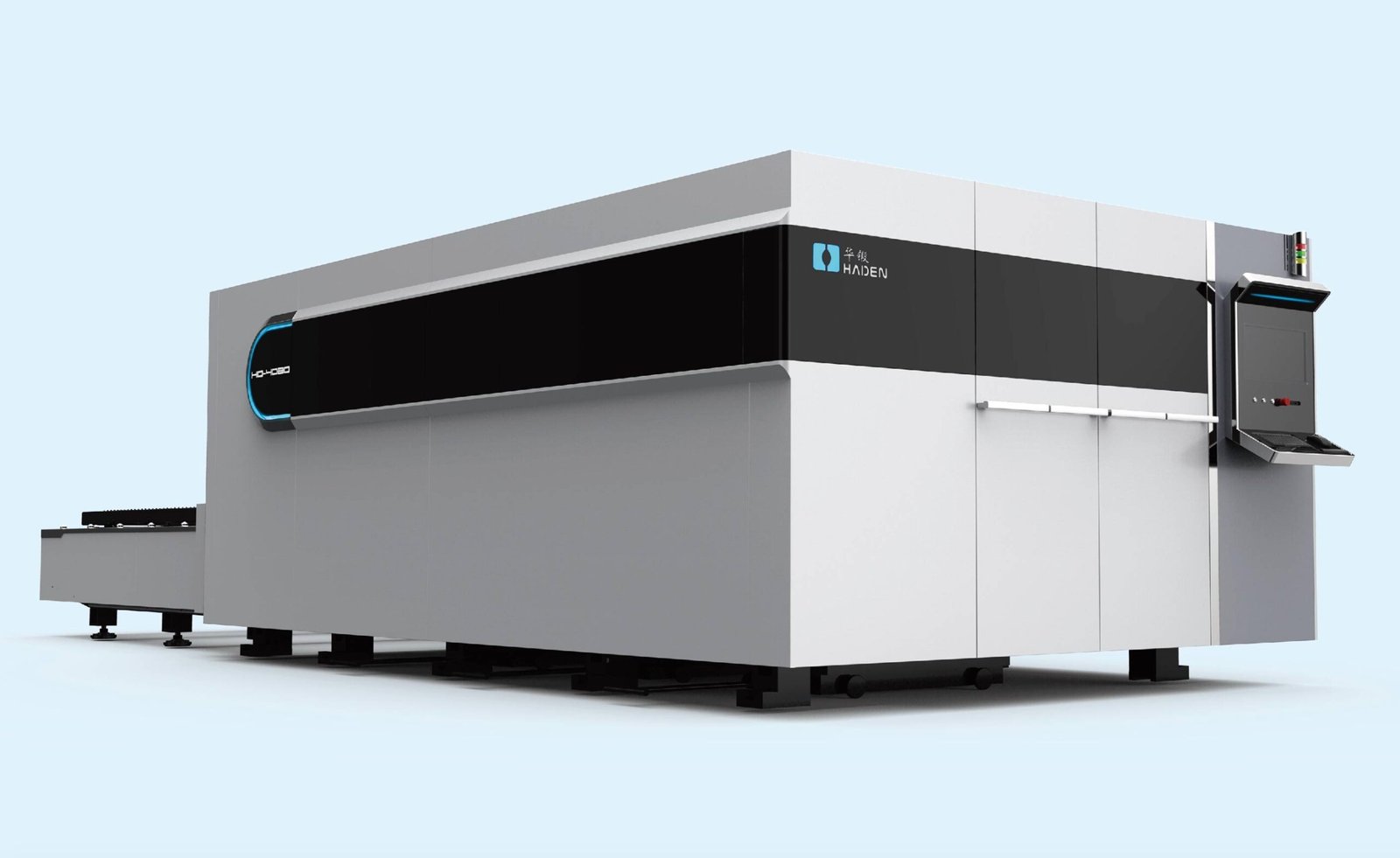

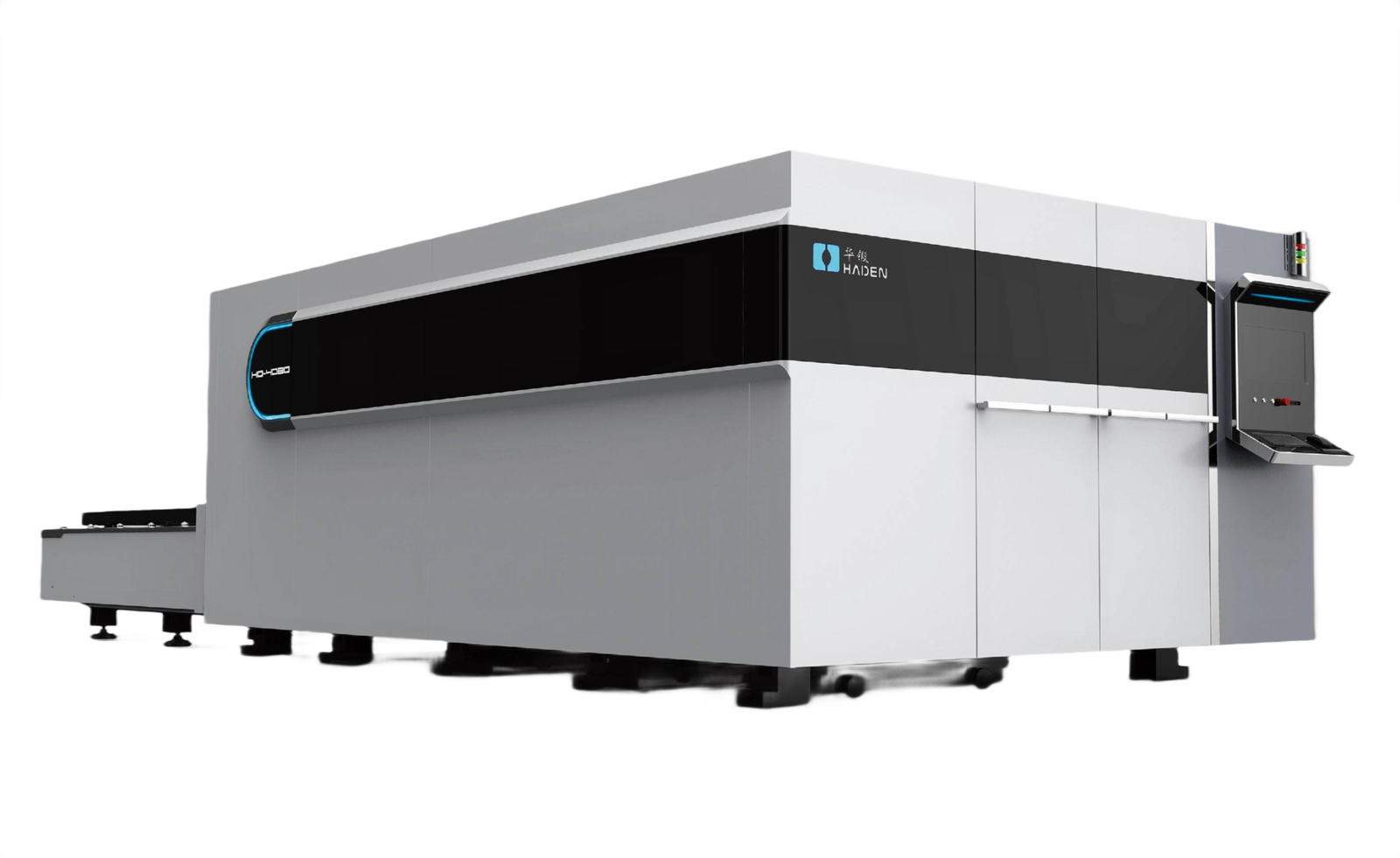

The HD-T3 Series fully enclosed exchange-table laser cutting machine combines automated pallet exchange with full safety enclosure to support continuous, unattended production with elevated throughput and operator protection. The exchange table dramatically reduces idle time between cuts while the full enclosure enhances safety and environmental control. Designed for job shops, industrial manufacturers, and OEM metal fabrication plants, the HD-T3 delivers repeatable cutting quality, long production runs, and process reliability.
Select a component to view key features and structure details.
Units: mm / mm·m / m/min / G / kg. Specifications are subject to change without notice.
| Parameter | HD-T3-3015 | HD-T3-4015 | HD-T3-4020 | HD-T3-6015 | HD-T3-6020 | HD-T3-6025 |
|---|---|---|---|---|---|---|
| Range of Machining (L×W) | 3000×1500 | 4000×1500 | 4000×2000 | 6000×1500 | 6000×2000 | 6000×2500 |
| X-axis Stroke | 1505 | 1505 | 2005 | 1505 | 2005 | 2505 |
| Y-axis Stroke | 3005 | 4005 | 4005 | 6005 | 6005 | 6005 |
| Z-axis Stroke | 300 | 300 | 300 | 300 | 300 | 300 |
| X/Y Positioning Accuracy | ±0.05 mm/m | ±0.05 mm/m | ±0.05 mm/m | ±0.05 mm/m | ±0.05 mm/m | ±0.05 mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03 mm/m | ±0.03 mm/m | ±0.03 mm/m | ±0.03 mm/m | ±0.03 mm/m | ±0.03 mm/m |
| X/Y Max Positioning Speed | 120 m/min | 120 m/min | 120 m/min | 120 m/min | 120 m/min | 120 m/min |
| X/Y Max Acceleration | 1.0–2.0 G | 1.0–2.0 G | 1.0–2.0 G | 1.0–2.0 G | 1.0–2.0 G | 1.0–2.0 G |
| Height Adjustment | Planar Tracking | Planar Tracking | Planar Tracking | Planar Tracking | Planar Tracking | Planar Tracking |
| Minimum Line Width | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Max Load of the Table | 600 kg | 650 kg | 750 kg | 900 kg | 1000 kg | 1100 kg |
| Machine Weight | 7200 kg | 7800 kg | 8000 kg | 8800 kg | 9000 kg | 9200 kg |
| Drive System | Gantry Double Drive | Gantry Double Drive | Gantry Double Drive | Gantry Double Drive | Gantry Double Drive | Gantry Double Drive |
| Numerical System | CypCut | CypCut | CypCut | CypCut | CypCut | CypCut |
| Dimensions (L×W×H) | 8500×3100×2100 | 10500×3100×2100 | 10500×3600×2100 | 14500×3100×2100 | 14500×3600×2100 | 14500×4100×2100 |
Selected drive and motion components designed for stable cutting accuracy, smooth dynamics, and long-term reliability in daily production.
One-piece cast aluminum beam reduces moving mass while maintaining high rigidity. Lower inertia supports faster response during acceleration and direction changes.
Panasonic servo motors provide responsive motion control and stable torque output, supporting smooth cutting and reliable positioning.
Precision rack transmission ensures stable long-stroke positioning and repeatable accuracy during high-speed cutting.
High-precision reducer improves torque stability and supports low-backlash motion control in demanding cutting conditions.
HIWIN linear guideways provide smooth, low-friction travel and stable load capacity, supporting repeatable positioning accuracy.
Integrated programming, nesting, and cutting control support efficient setup and stable production execution.
Need a configuration recommendation for your material, thickness, and production target?
Discuss Your ApplicationReliable sheet metal machinery backed by proven manufacturing strength and global delivery experience.
Haden specializes in sheet metal fabrication equipment, including press brakes, fiber laser cutting machines, shearing machines, V-grooving machines, leveling lines, and plate rolling machines. We focus on stable performance, repeatable accuracy, and long-term production reliability for industrial users.
We cooperate with manufacturers, contractors, and industrial groups across global markets.
