Precision servo-hydraulic control with long-term stability — designed for demanding bending applications requiring accuracy, repeatability, and reliable performance.

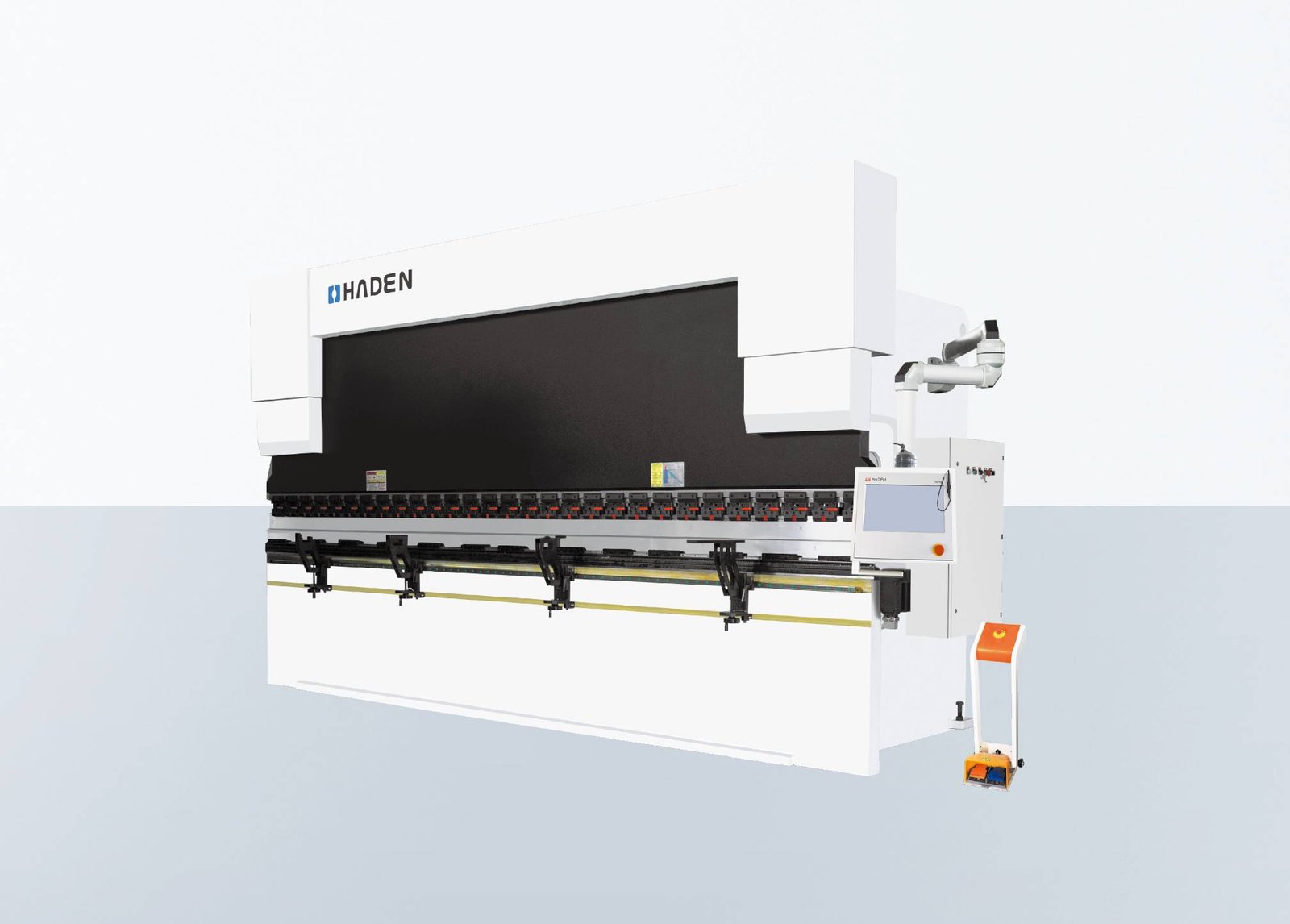

The HDC Series electro-hydraulic CNC press brake is designed for precision bending and production reliability in demanding fabrication environments. With responsive electro-hydraulic actuation, rigid frame construction, and advanced CNC programming, it delivers consistent accuracy and repeatability for continuous daily output. The HDC Series is a practical solution for job shops, industrial manufacturers, and OEM metal fabrication plants that require stable performance across a wide range of materials and part geometries.
Select a component to view key features and structure details.
Units: Force (kN) · Length/Distance/Depth/Height/Stroke/Dimension (mm) · Motor Power (kW) CNC differences (vs. NC): controller + servo backgauge axes upgrade; core mechanical specs remain comparable by tonnage/length.
| Model | Bending Force (kN) | Bending Length (mm) | Distance Between Uprights (mm) | Throat Depth (mm) | Max Open Height (mm) | Slider Stroke (mm) | Main Motor Power (kW) | Overall Dimension L×W×H (mm) |
|---|
The press brake is equipped with carefully selected components and accessories, focusing on stability, service life, and ease of maintenance for daily production use.
The movable front support frame assists operators when bending long or wide sheet metal. It slides smoothly along the guide rail and can be fixed at any working position to help maintain material alignment during the bending process.
A mechanical gear and rack synchronization structure ensures uniform ram movement across the full bending length and supports stable, repeatable bending accuracy.
High-quality limit switches provide accurate position detection and travel protection for key machine movements, helping prevent over-travel during operation.
The electrical system uses Schneider Electric components that comply with international standards and offer stable, reliable performance in industrial environments.
The integrated hydraulic valve group delivers stable oil flow and precise pressure control, ensuring smooth and consistent machine operation during bending cycles.
The NC control system features a clear interface and straightforward operation logic, allowing operators to complete setup quickly and maintain stable output.
Not sure which configuration best suits your application? Share your material thickness and bending length with us.
Discuss Your ApplicationIf you need to purchase separate accessories or services to renovate the machine, you can explore the available options through the links below.
Modern CNC control solutions enhance bending accuracy, programming efficiency, and operational flexibility.
Learn More
Precision backgauge upgrades improve positioning accuracy and repeatability for consistent production results.
Learn More
Integrated safety solutions provide reliable operator protection while maintaining efficient machine operation.
Learn More
High-quality tooling and clamping systems reduce setup time and ensure stable, repeatable bending performance.
Learn More
Robotic automation supports higher productivity, consistent quality, and reduced operator workload.
Learn MoreReliable sheet metal machinery backed by proven manufacturing strength and global delivery experience.
Haden specializes in sheet metal fabrication equipment, including press brakes, fiber laser cutting machines, shearing machines, V-grooving machines, leveling lines, and plate rolling machines. We focus on stable performance, repeatable accuracy, and long-term production reliability for industrial users.
We cooperate with manufacturers, contractors, and industrial groups across global markets.
Key technical and commercial questions regarding the HDC Series electro-hydraulic CNC press brake.
