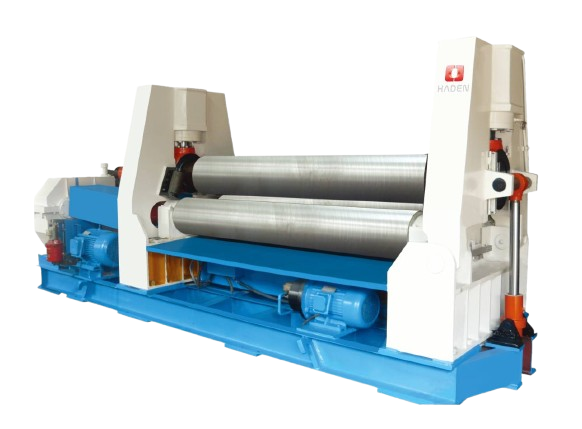

W11XA (NC / CNC) Series Horizontal Lower-Adjusting 3-Roll Plate Rolling Machine

Horizontal lower-adjusting 3-roll design built for stable pre-bending, efficient rolling, and consistent roundness in daily plate fabrication.

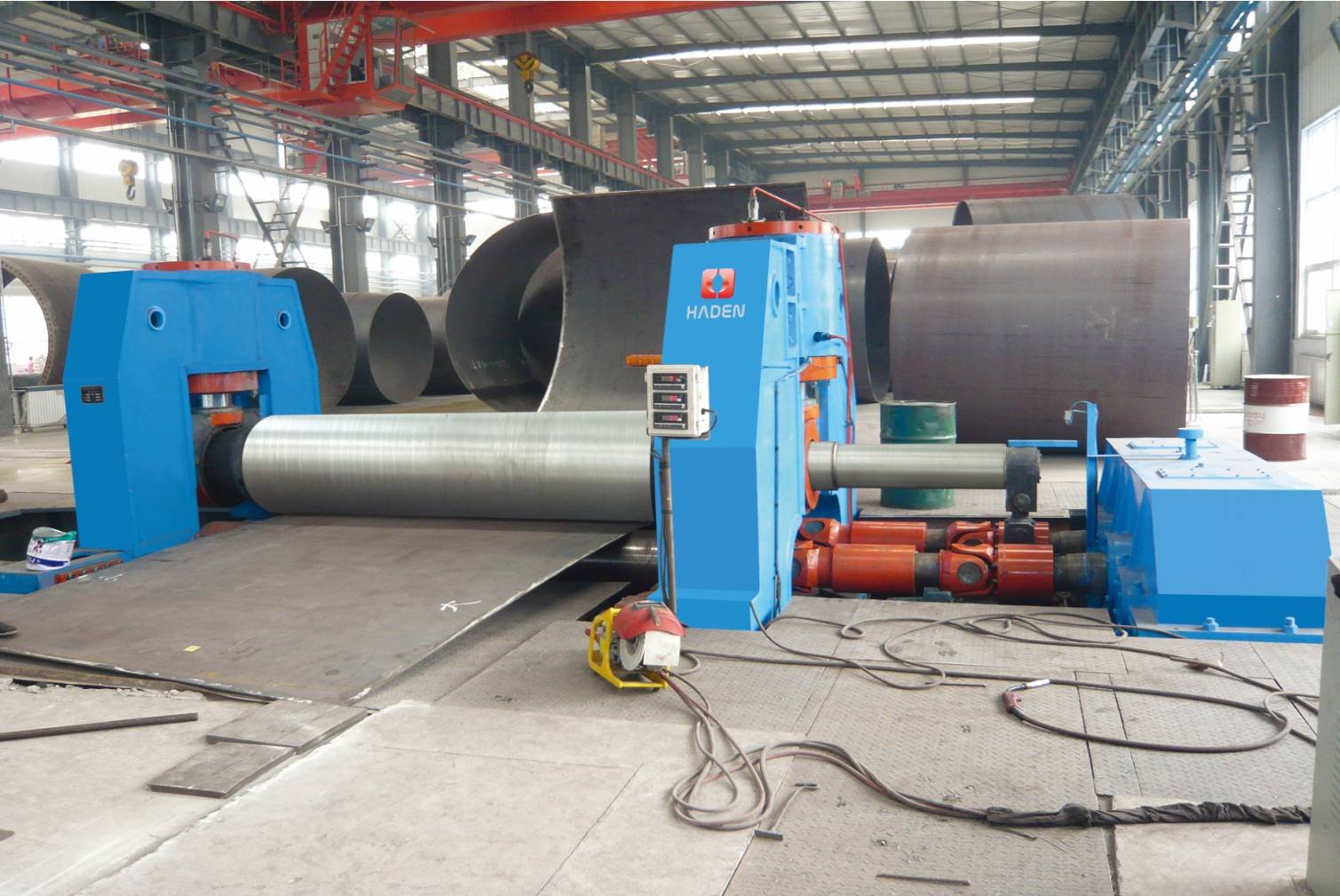

W11XA (NC/CNC) horizontal lower-adjusting 3-roll plate rolling machine

Product Highlights

The W11XA series is designed for efficient plate rolling with a fixed center-distance lower-adjusting structure. It supports pre-bending at the plate ends and stable forming without extra U-turning, improving productivity and reducing manual handling.

✓Pre-bending function with fixed center distance
✓Finish rolling without U-turning
✓Drive options: two lower rollers or three-roller full drive
✓Mechanical or hydraulic motor drive
✓Clear display feedback from position sensors
✓Easy operation, safe and economical configuration

NC version offers a cost-effective configuration for standard rolling. CNC version enables programmable control for higher repeatability.

Talk to a Specialist

Specification	Pre-bending (mm)	Rolling (mm)	Width (mm)	Yield (MPa)	Min Bending Dia (mm)	Upper Roller Dia (mm)	Motor Power (kW)
W11XANC-20×2000	16	20	2000	265	600	380	5.5×2
W11XANC-20×2500	16	20	2500	265	1000	380	7.5×2
W11XANC-30×2500	25	30	2500	265	1200	520	11×2
W11XANC-30×3000	25	30	3000	265	1500	560	11×2
W11XANC-50×3000	40	50	3000	265	2000	680	18.5×2
W11XANC-80×3000	70	80	3000	265	2500	850	30×2
W11XANC-120×3000	100	120	3000	265	2500	960	55×2

About Haden

Reliable sheet metal machinery backed by proven manufacturing strength and global delivery experience.

Haden specializes in sheet metal fabrication equipment, including press brakes, fiber laser cutting machines, shearing machines, V-grooving machines, leveling lines, and plate rolling machines. We focus on stable performance, repeatable accuracy, and long-term production reliability for industrial users.

✓ Quality System — ISO 9001 certified manufacturing with CE-compliant equipment.
✓ Product Coverage — Press brakes, laser cutting, shearing, V-grooving, leveling lines, and plate rolling machines.
✓ Global Markets — Equipment delivered to more than 60 countries worldwide.

Watch Factory Video Talk to a Haden Specialist

Inside Haden manufacturing: production, assembly, and quality control.

Trusted by Customers Worldwide

We cooperate with manufacturers, contractors, and industrial groups across global markets.

Certifications & Qualifications

Verified certificates and compliance documents to support stable production and international delivery.

CE Certificate (Press Brake)

EU Conformity Compliance

CE Certificate for Laser Cutting Machine

CE Certificate (Laser Cutting Machine)

EU Conformity Compliance

Verification of Conformity (VoC)

MD 2006/42/EC & EMC 2014/30/EU

ISO 9001 Certificate

Quality Management System

IP Management System Certificate

Intellectual Property Management

Utility Model Patent Certificate

CNIPA Patent Registration

Technology-based SME Certificate

Jiangsu Province Recognition

Scroll to view more. Click any certificate to view full size.

Frequently Asked Questions

Common technical and commercial questions regarding the W11XA Series horizontal lower adjusting 3-roll plate rolling machine.

What is the W11XA Series designed for?

The W11XA Series is engineered for rolling cylindrical shells, conical parts, and curved plates with controlled material feeding and precise pre-bending, suitable for structural fabrication, tanks, and cylindrical vessels.

How does the horizontal lower roll adjusting mechanism work?

The horizontal lower adjusting design allows the lower roll to move laterally, simplifying plate entry and enabling fine control of the initial bend. This improves forming accuracy and operator convenience.

Which control systems are available?

W11XA machines are offered with both NC and CNC control options. NC provides reliable numeric positioning; CNC enhances automation with programmable sequences and higher repeatability.

What materials and thickness ranges can be processed?

The machine can roll mild steel, stainless steel, aluminum, and other metal plates. Applicable thickness and width depend on the chosen model and selected configuration.

How is installation and after-sales support provided?

The machine is supplied with complete installation and operation documentation. Remote commissioning support is available, and on-site service can be arranged if needed. Spare parts and technical support are offered throughout the machine’s service life.
